AMIGO CTM-5A Smart Grid Meter [PDF]

jndelectronics

AMIGO CTM-5A Smart Grid Meter

Name: AMIGO CTM-5A Smart Grid Meter
Brand: jndelectronics
SKU: 49793840382254
Availability: OutOfStock

High-Precision Three-Phase CT-Operated Energy Meter for Smart Grid Systems

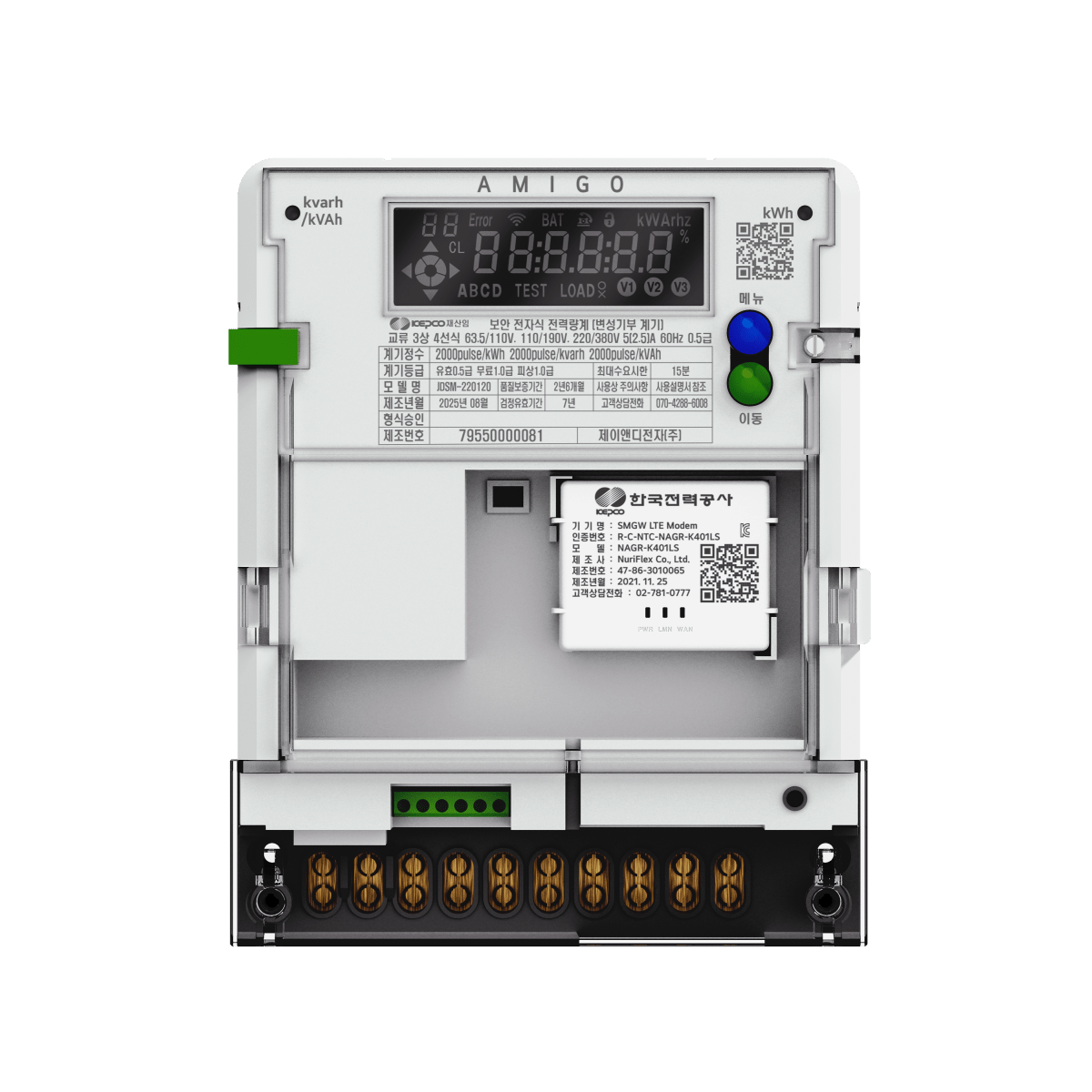

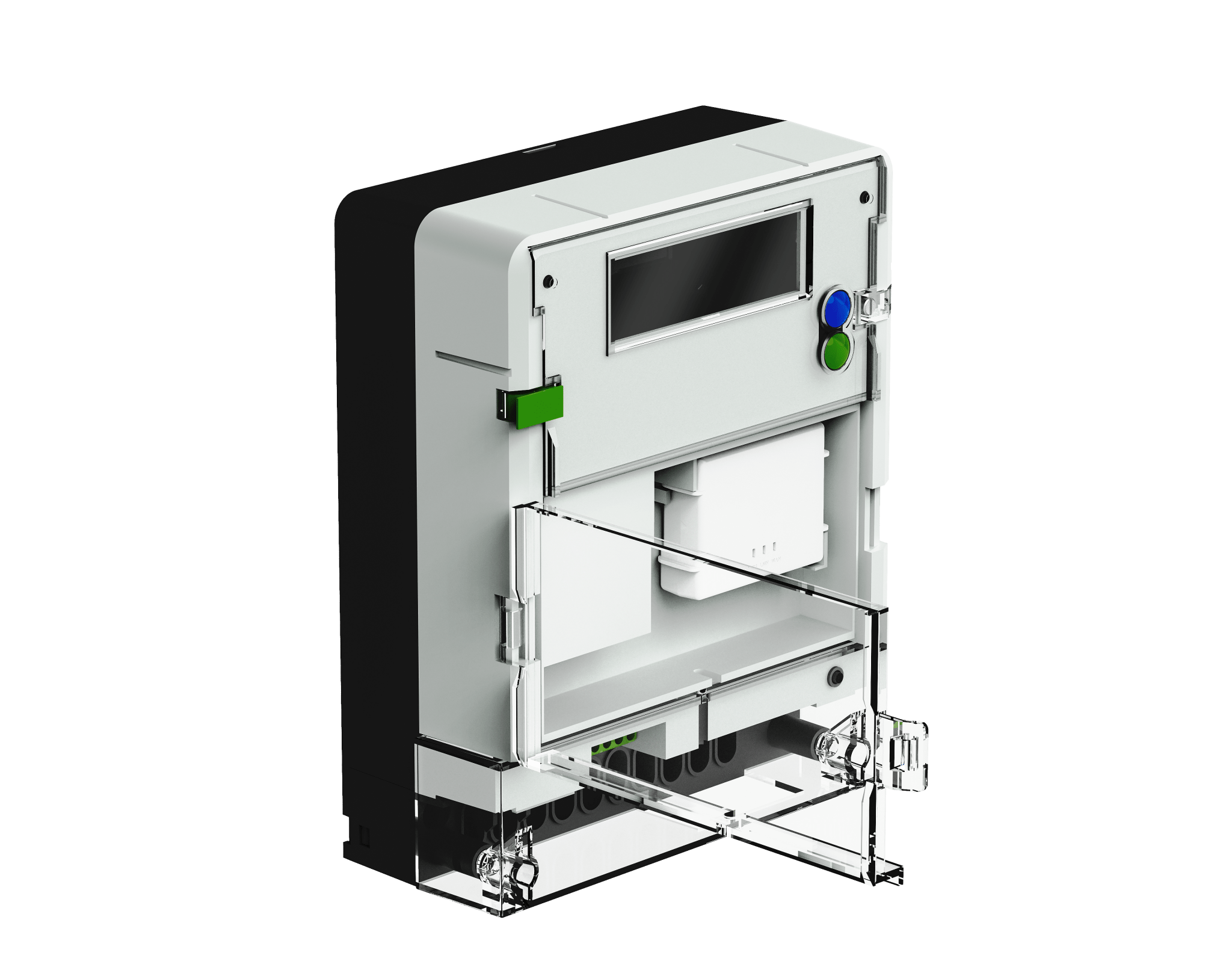

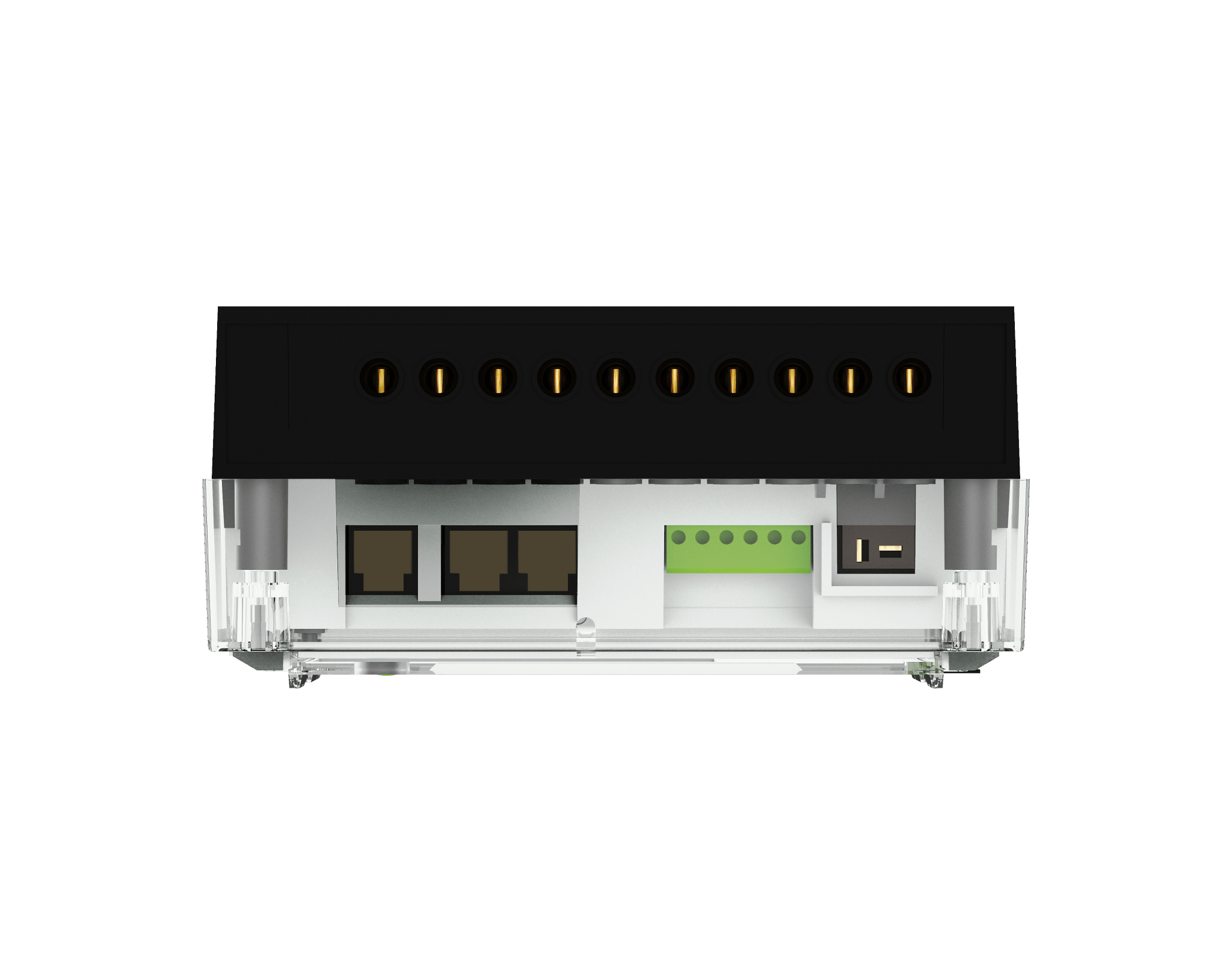

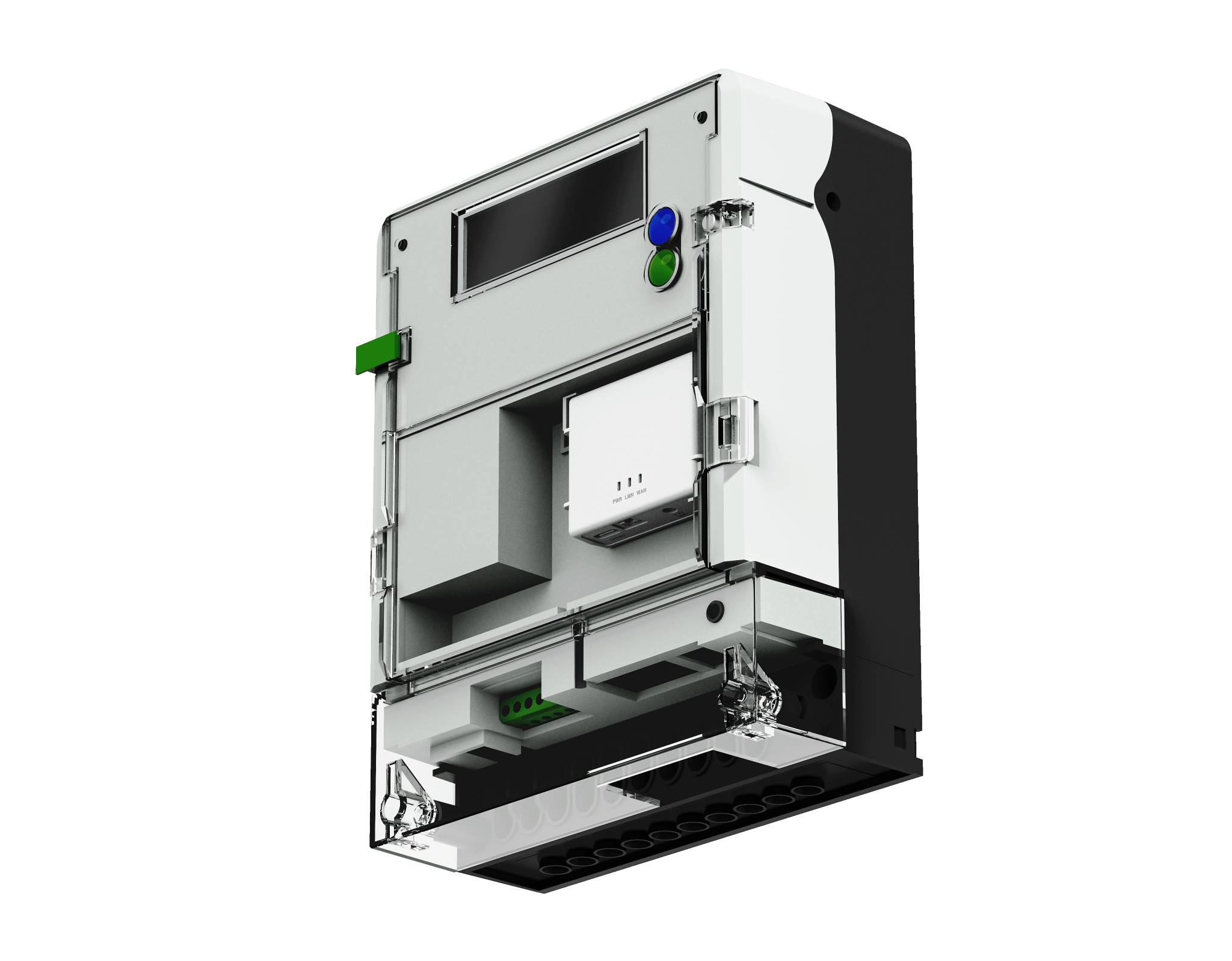

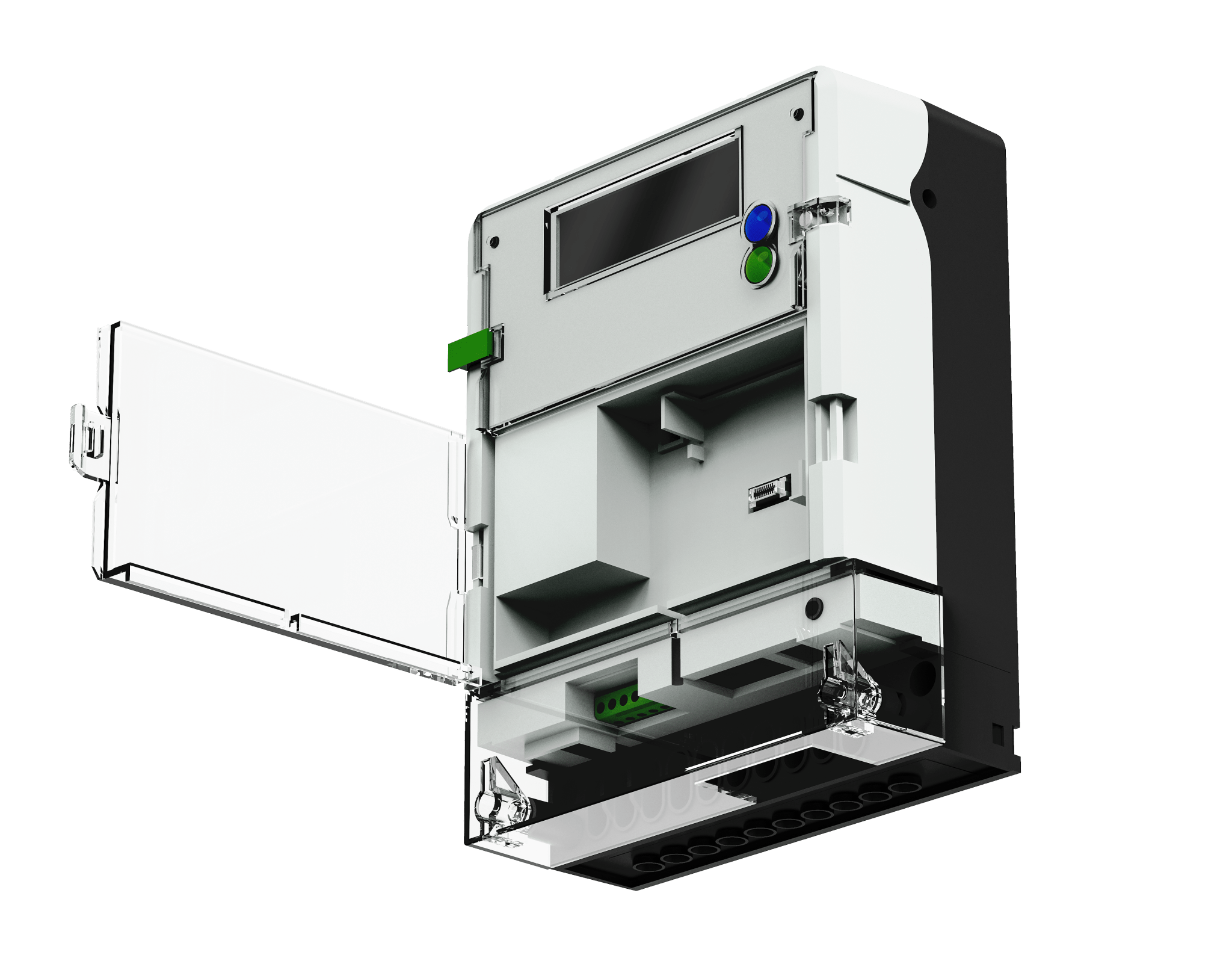

The AMIGO CTM-5A Smart Grid Meter from JND Electronics is a high-accuracy three-phase, CT-operated smart meter designed for modern energy monitoring systems in industrial, commercial, and residential settings.

Product variants

Pairs well with

KEY FEATURES

CT-Operated Design (5A): Compatible with external CTs for high-capacity systems
8-Channel Measurement: Monitors active, reactive (lagging/leading), and apparent power (import/export)
High Data Capacity: Stores up to 6,240 LP records with real-time operation monitoring
Advanced Display Interface: LCD with status indicators for power flow, errors, phase loss, TOU band, and more
Built-in Security: KCMVP-certified encryption, tamper detection (magnetic field & terminal cover)

Smart Communication & Control

Communication Options: RS485, Built-in Wi-SUN Modem
Optional Modules: PLC Modem, Wireless LTE Modem
Protocols Supported: DLMS/COSEM, Modbus
Remote Upgrades: Meter and modem firmware update support
External I/O: Contactor control terminal and T-Plug external device power output

DOWNLOADS

AMIGO CTM-5A Smart Grid Meter [PDF]

With real-time TOU (Time of Use) capabilities, bi-directional metering, and remote firmware update support, it delivers precise and flexible energy data management. Fully compliant with IEC 62052-11, IEC 62053-22, and DLMS/COSEM protocols, the CTM-5A is optimized for smart grid integration, enabling utilities and energy providers to future-proof their infrastructure.

Smarter, More Secure Energy Monitoring

Upgrade your infrastructure with the AMIGO CTM-5A Smart Grid Meter a future-ready, secure, and scalable metering solution for next-generation power systems.
