Single-phase, 2-wire, 120A capacity Bidirectional energy measurement (import/export) TOU billing & flexible tariff control 6,240 LP data storage / Real-time LP data Built-in PLC coupler & Wi-SUN modem Remote software upgrade (meter & modem) KCMVP-certified security & tamper detection Supports RS485, PLC, Wi-SUN, LTE communication Compact design with intuitive dual-button interface

AMIGO DCM-120A Smart Meter [PDF]

jndelectronics

AMIGO DCM-120A Smart Meter

Name: AMIGO DCM-120A Smart Meter
Brand: jndelectronics
Availability: OutOfStock

Product variants

Pairs well with

KEY FEATURES

Single-phase, 2-wire, 120A capacity
Bidirectional energy measurement (import/export)
TOU billing & flexible tariff control
6,240 LP data storage / Real-time LP data
Built-in PLC coupler & Wi-SUN modem
Remote software upgrade (meter & modem)
KCMVP-certified security & tamper detection
Supports RS485, PLC, Wi-SUN, LTE communication
Compact design with intuitive dual-button interface

DOWNLOADS

AMIGO DCM-120A Smart Meter [PDF]

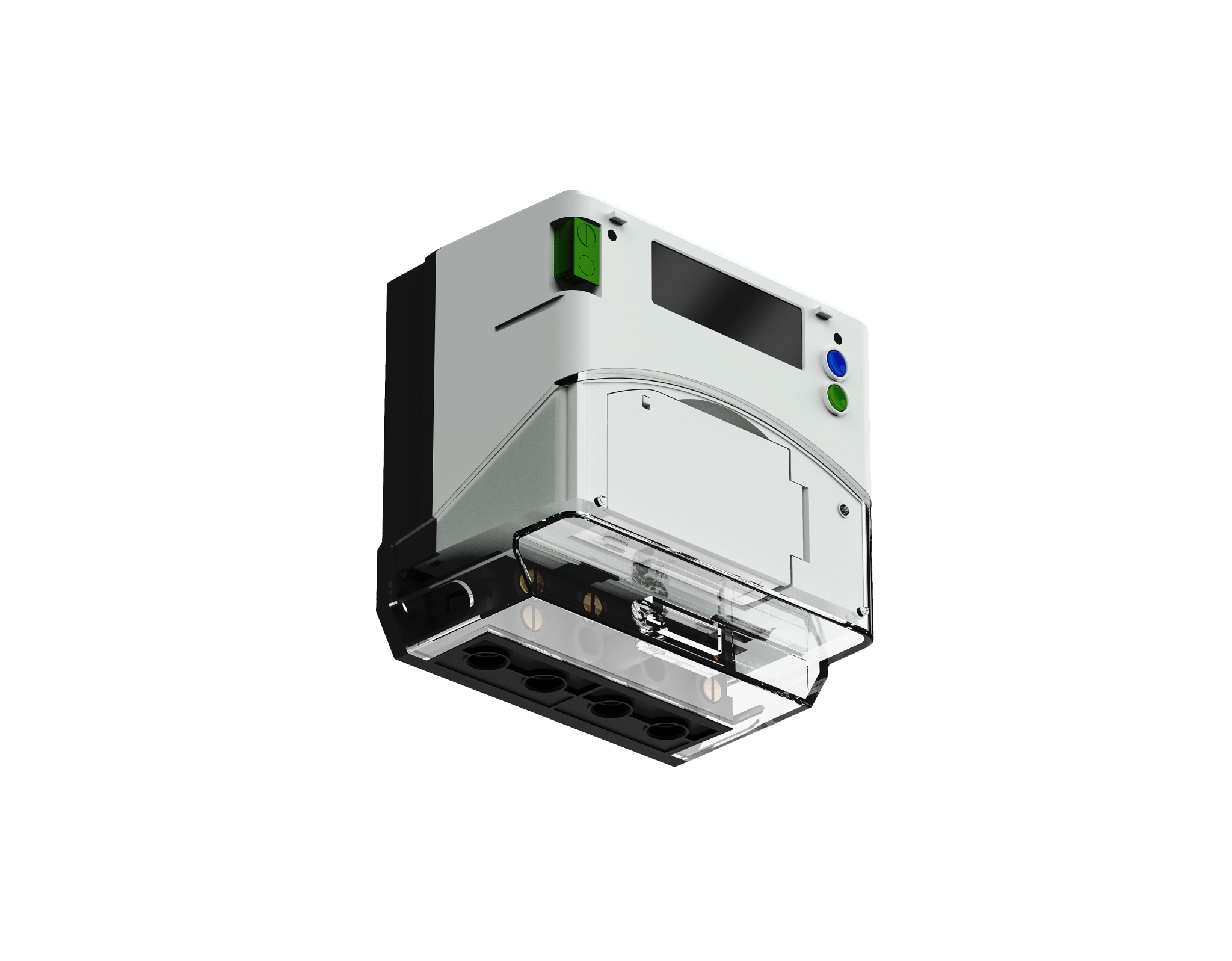

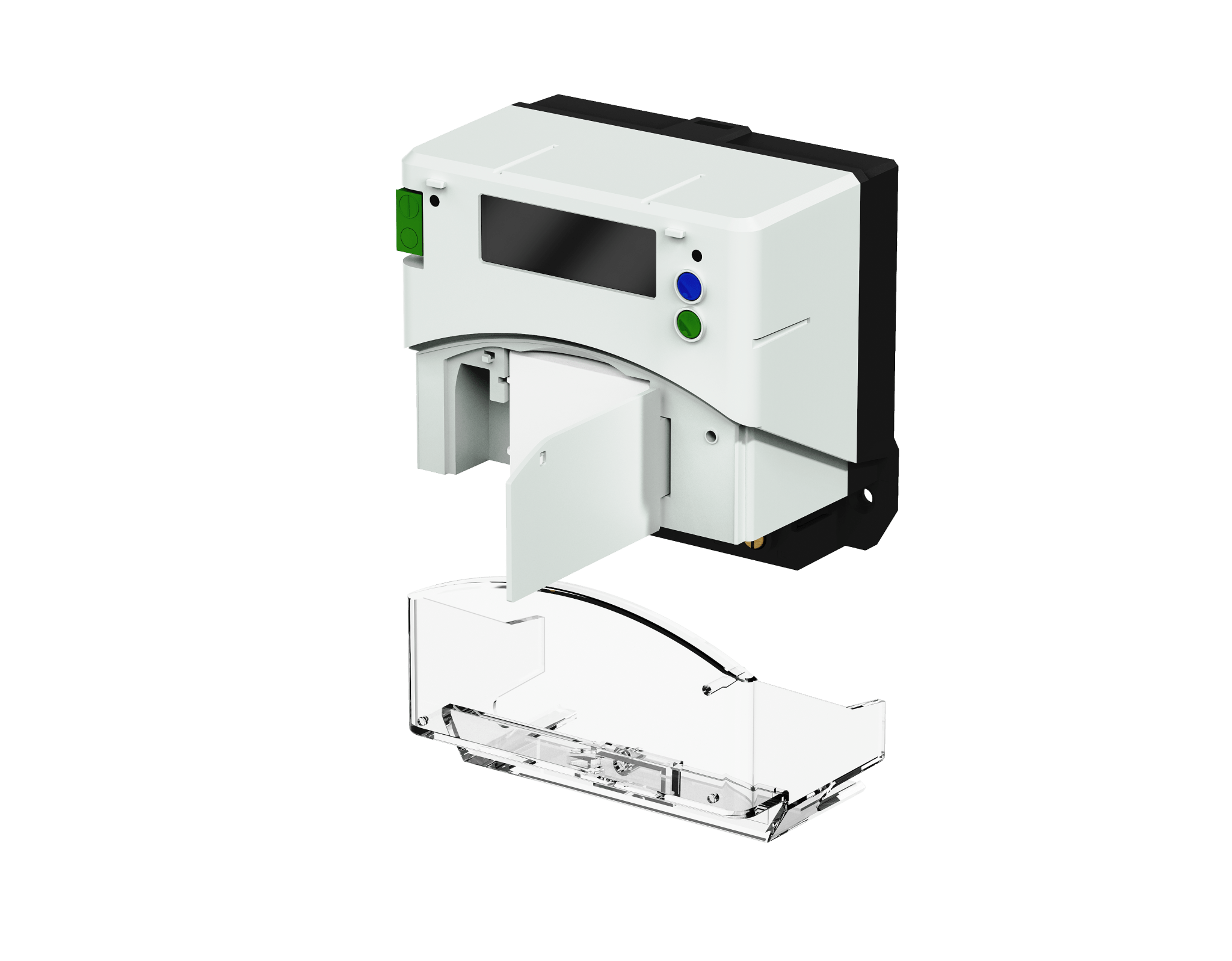

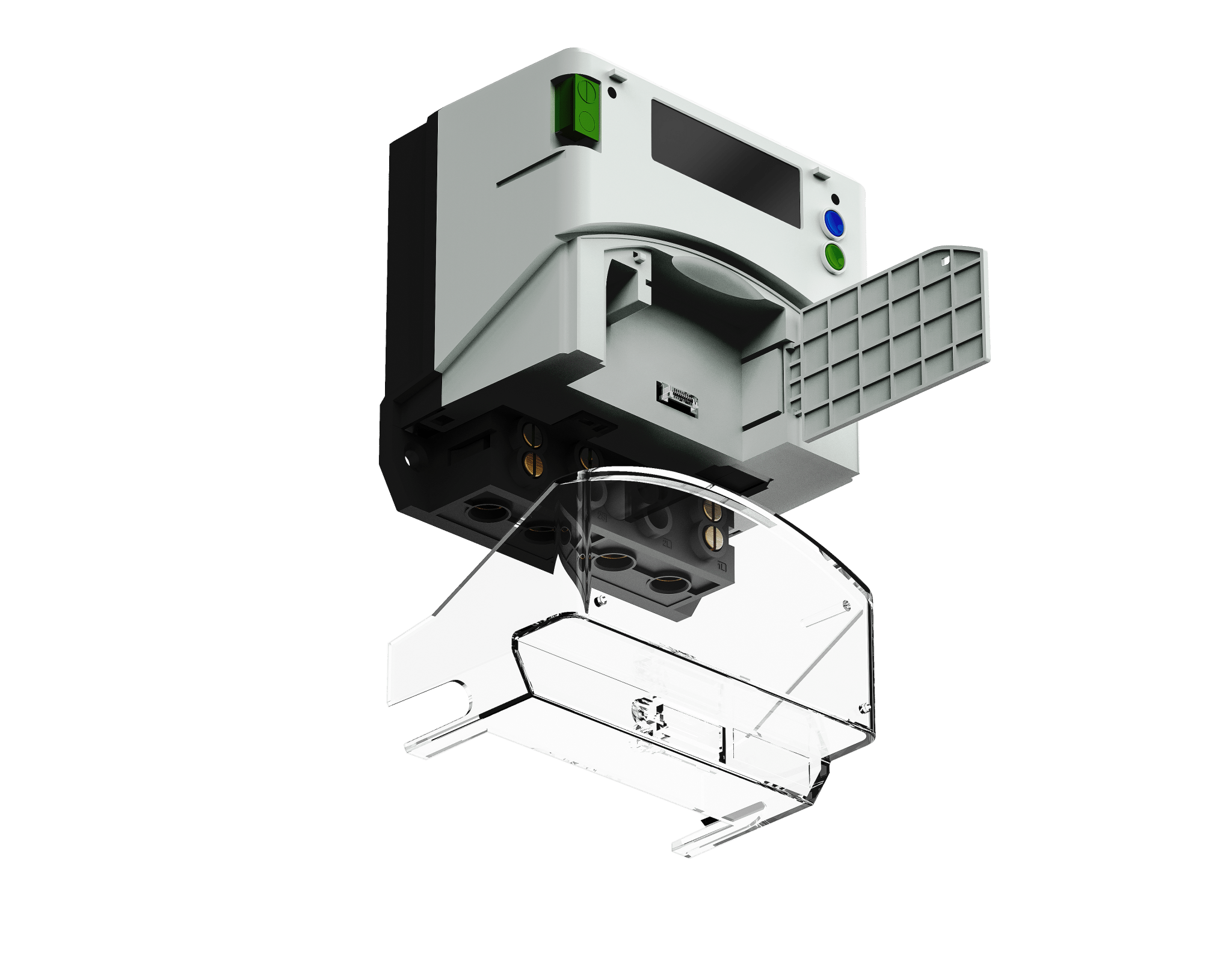

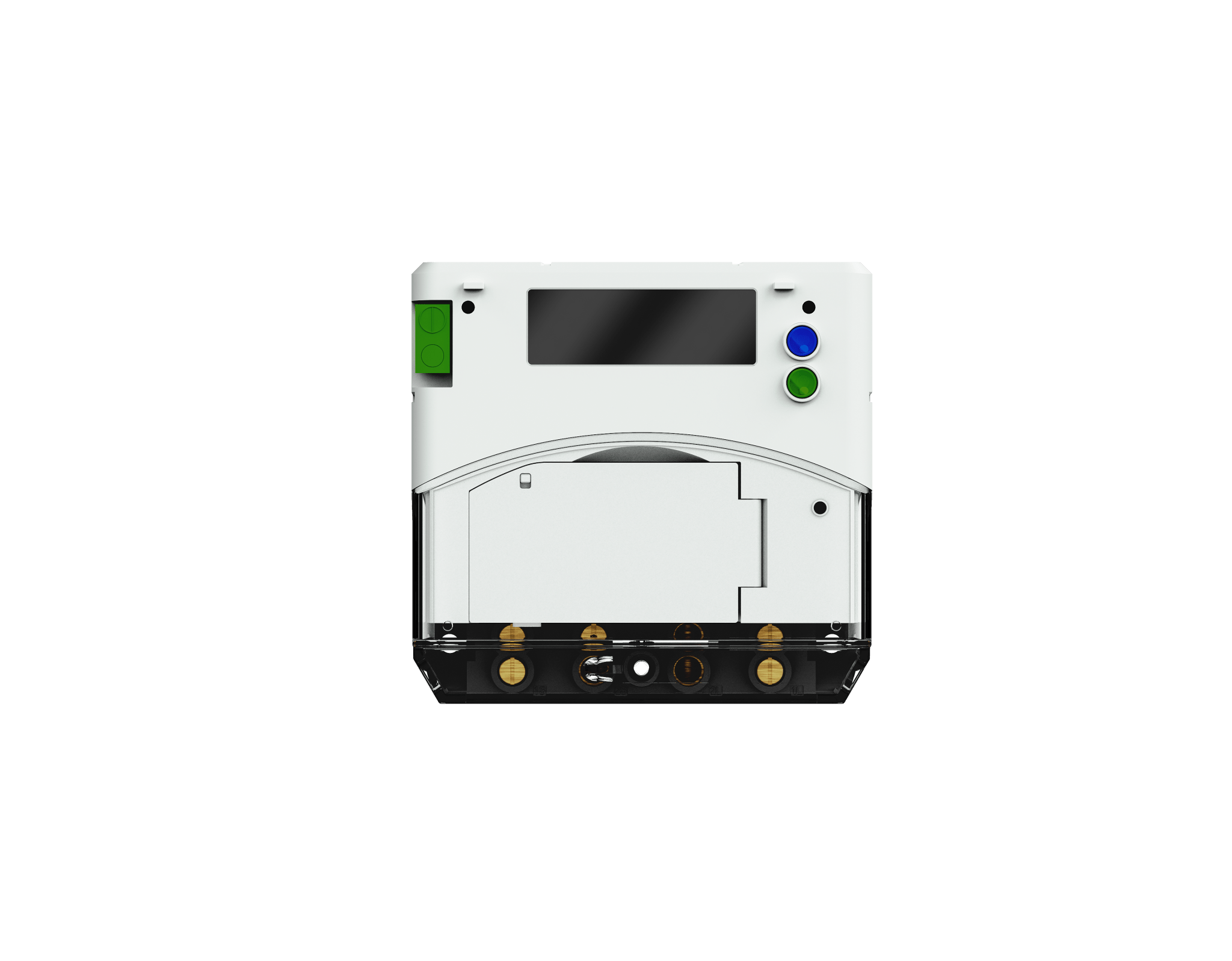

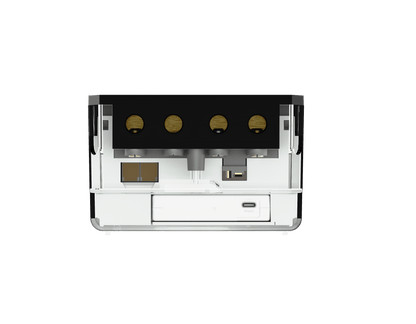

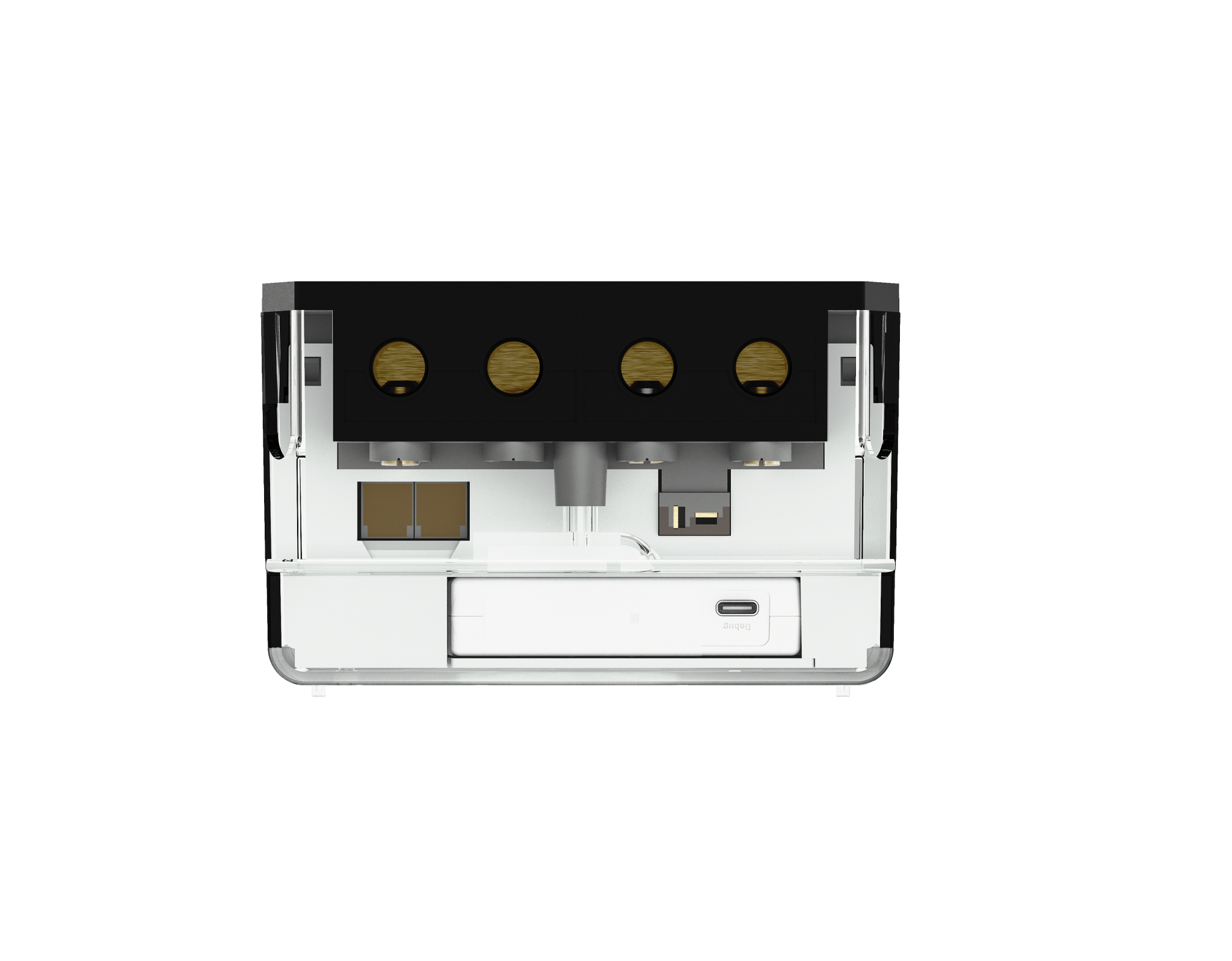

Advanced Single-Phase Smart Meter for Residential & Industrial Use

The AMIGO DCM-120A(Single) is a high-capacity smart meter designed for efficient and accurate energy monitoring in both residential and industrial settings.

With real-time TOU (Time-of-Use) functionality and two-way communication, it enables flexible tariff control and optimized energy usage.

This meter offers comprehensive power metering including active, reactive, and apparent power across 8 data channels, and supports remote firmware updates and tamper detection for enhanced security.

Built to comply with IEC and DLMS/COSEM standards, the DCM-120A ensures compatibility and reliability in smart grid environments.
