3-phase 4-wire, 120A standalone configuration Measures active, reactive, and apparent power (import/export, 8 channels total) Stores up to 6,240 LP data records with real-time monitoring KCMVP-certified encryption module & tamper detection (magnetic field & terminal cover) Built-in PLC coupler, Wi-SUN modem, RS485 communication Supports remote firmware updates (meter, modem) External power via T-Plug, load control signal output terminal LCD display with power flow direction, phase failure, TOU zone, load status indicators Optional modules: PLC, LTE, Wi-SUN FAN, SMGW-C

AMIGO DCM-120A Smart Meter (3-Phase) [PDF]

jndelectronics

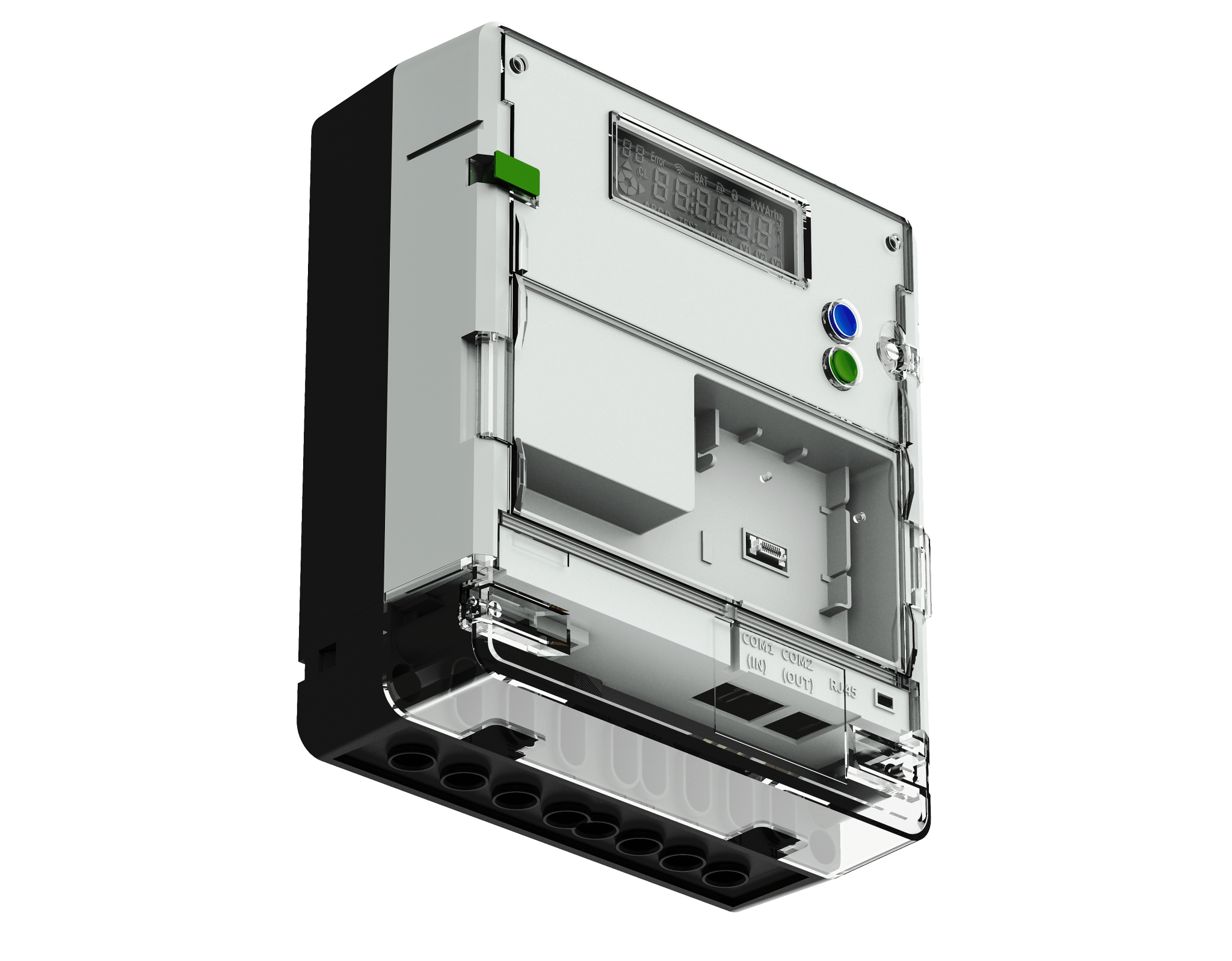

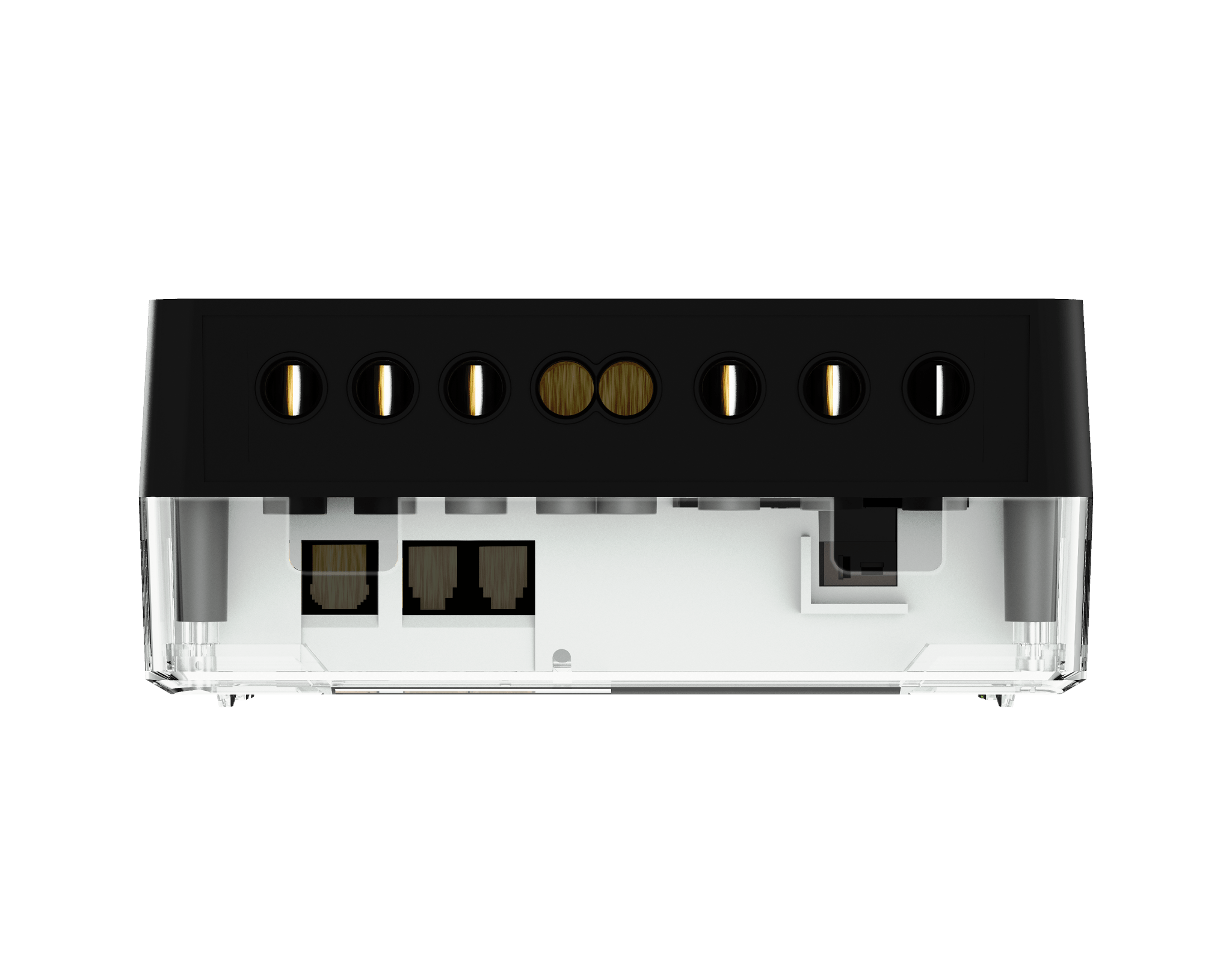

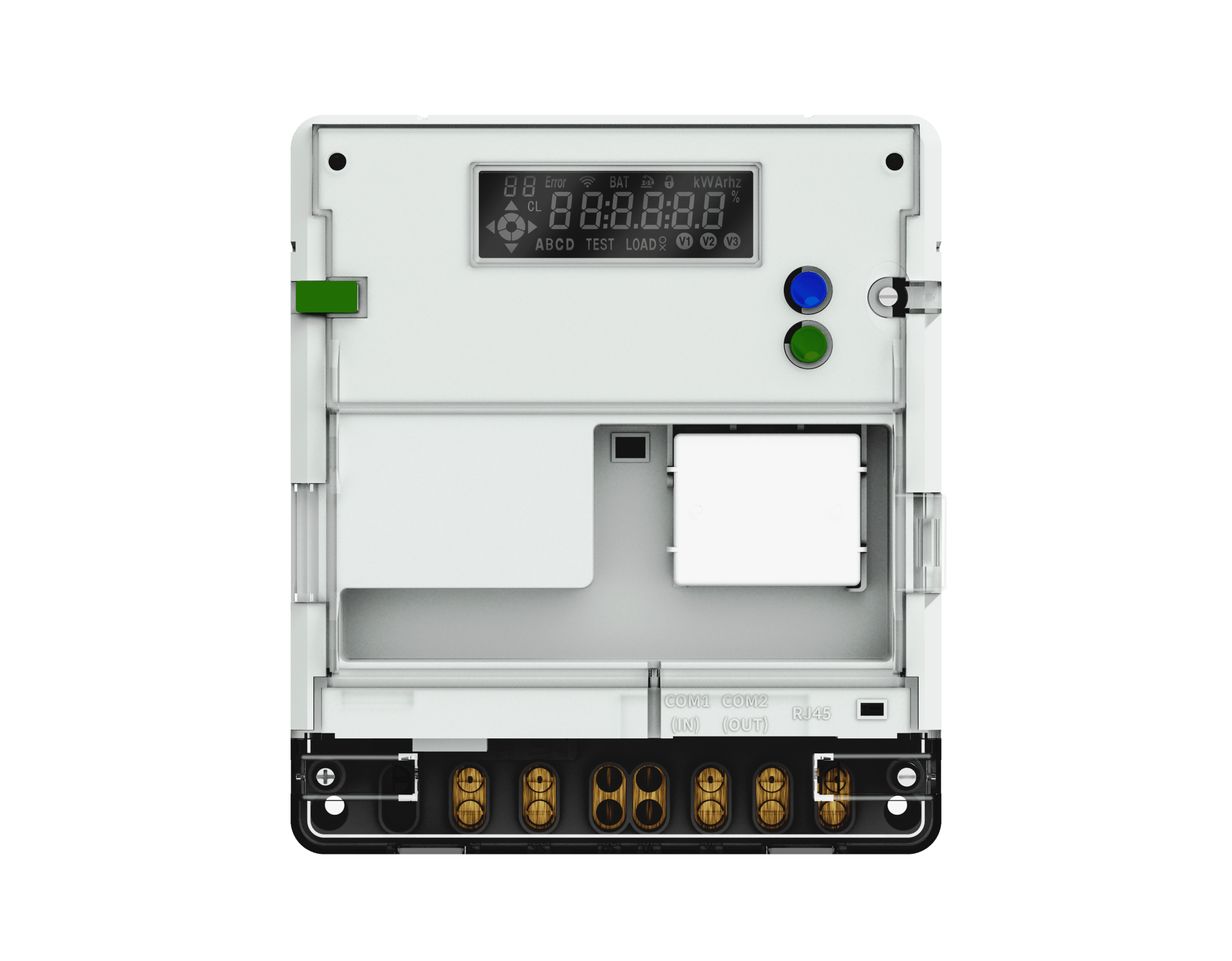

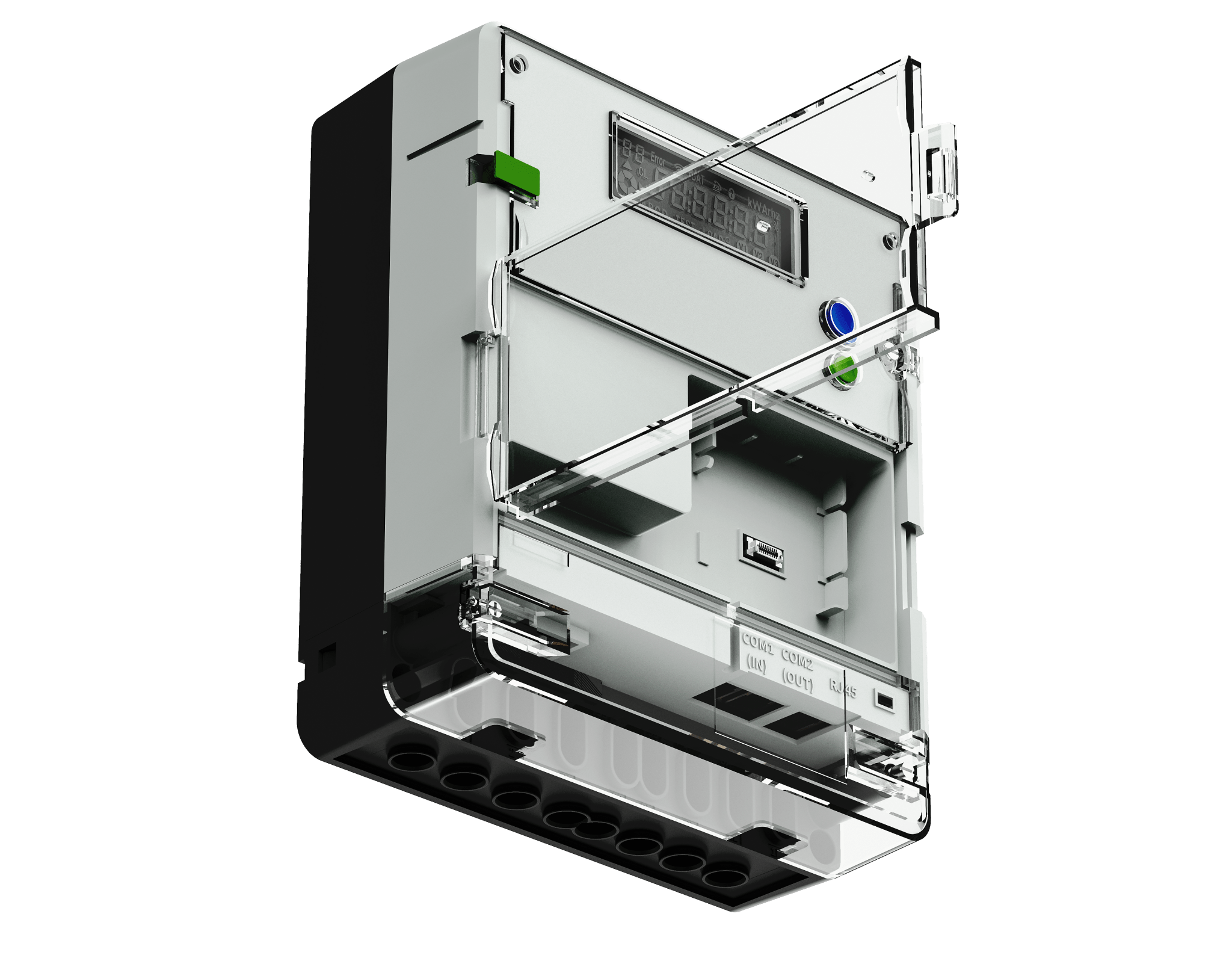

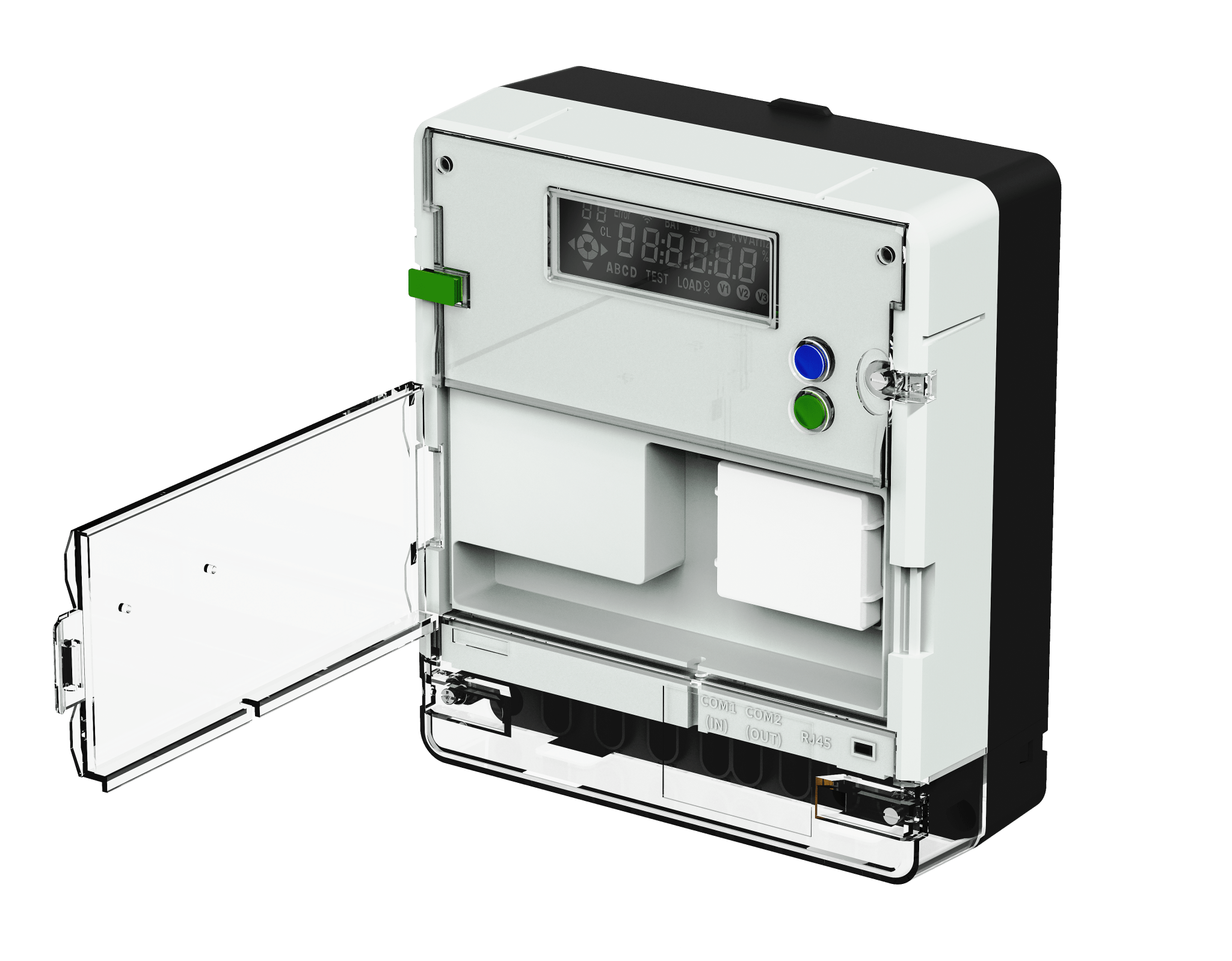

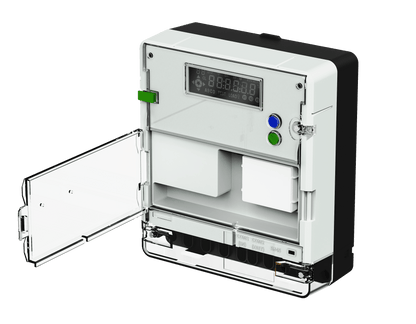

AMIGO DCM-120A Smart Meter (3-Phase)

Name: AMIGO DCM-120A Smart Meter (3-Phase)
Brand: jndelectronics
Availability: OutOfStock

Product variants

Pairs well with

KEY FEATURES

3-phase 4-wire, 120A standalone configuration
Measures active, reactive, and apparent power (import/export, 8 channels total)
Stores up to 6,240 LP data records with real-time monitoring
KCMVP-certified encryption module & tamper detection (magnetic field & terminal cover)
Built-in PLC coupler, Wi-SUN modem, RS485 communication
Supports remote firmware updates (meter, modem)
External power via T-Plug, load control signal output terminal
LCD display with power flow direction, phase failure, TOU zone, load status indicators
Optional modules: PLC, LTE, Wi-SUN FAN, SMGW-C

DOWNLOADS

AMIGO DCM-120A Smart Meter (3-Phase) [PDF]

Versatile Smart Energy Meter for Industrial and Residential Applications

The AMIGO Three-Phase DCM-120A is a high-performance smart meter designed for precise energy measurement in modern electrical systems.

It supports bidirectional communication, real-time TOU (Time-of-Use) functionality, and flexible tariff control, enabling accurate billing and efficient energy management for both industrial and residential use.

Built to meet international standards such as IEC 62052-11, IEC 62053-21, and DLMS/COSEM, it ensures compatibility, security, and reliability within smart grid networks.
